We have seen how K-NN allows to perform classification in a non-parametric way. However, it has some short-comings:

It doesn’t work with many features;
It requires memorization of the training set;
Each classification requires a search of the K-nearest neighbors in the training set.

Compare this to a parametric predictive model such as the linear regression:

f(\mathbf{x}) = \beta_0 + \beta_1 x_1 + \ldots + \beta_n x_n

Parametric models are fast and compact - once we train them, we don’t need to save the training data and they can be used to classify new examples in a very natural way.

While linear regression is a powerful parametric models, it allows to model relationships between continuous independent and dependent variables and between qualitative independent variables and continuous variables. However, it does not allow to model relationships between continuous or qualitative independent variables and qualitative dependent variables.

Example Data

Establishing such relationships is useful in different contexts. For instance, let us consider the Breast Cancer Wisconsin dataset:

	radius1	texture1	perimeter1	area1	smoothness1	compactness1	concavity1	concave_points1	symmetry1	fractal_dimension1	...	texture3	perimeter3	area3	smoothness3	compactness3	concavity3	concave_points3	symmetry3	fractal_dimension3	Diagnosis
0	17.99	10.38	122.80	1001.0	0.11840	0.27760	0.30010	0.14710	0.2419	0.07871	...	17.33	184.60	2019.0	0.16220	0.66560	0.7119	0.2654	0.4601	0.11890	M
1	20.57	17.77	132.90	1326.0	0.08474	0.07864	0.08690	0.07017	0.1812	0.05667	...	23.41	158.80	1956.0	0.12380	0.18660	0.2416	0.1860	0.2750	0.08902	M
2	19.69	21.25	130.00	1203.0	0.10960	0.15990	0.19740	0.12790	0.2069	0.05999	...	25.53	152.50	1709.0	0.14440	0.42450	0.4504	0.2430	0.3613	0.08758	M
3	11.42	20.38	77.58	386.1	0.14250	0.28390	0.24140	0.10520	0.2597	0.09744	...	26.50	98.87	567.7	0.20980	0.86630	0.6869	0.2575	0.6638	0.17300	M
4	20.29	14.34	135.10	1297.0	0.10030	0.13280	0.19800	0.10430	0.1809	0.05883	...	16.67	152.20	1575.0	0.13740	0.20500	0.4000	0.1625	0.2364	0.07678	M
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
564	21.56	22.39	142.00	1479.0	0.11100	0.11590	0.24390	0.13890	0.1726	0.05623	...	26.40	166.10	2027.0	0.14100	0.21130	0.4107	0.2216	0.2060	0.07115	M
565	20.13	28.25	131.20	1261.0	0.09780	0.10340	0.14400	0.09791	0.1752	0.05533	...	38.25	155.00	1731.0	0.11660	0.19220	0.3215	0.1628	0.2572	0.06637	M
566	16.60	28.08	108.30	858.1	0.08455	0.10230	0.09251	0.05302	0.1590	0.05648	...	34.12	126.70	1124.0	0.11390	0.30940	0.3403	0.1418	0.2218	0.07820	M
567	20.60	29.33	140.10	1265.0	0.11780	0.27700	0.35140	0.15200	0.2397	0.07016	...	39.42	184.60	1821.0	0.16500	0.86810	0.9387	0.2650	0.4087	0.12400	M
568	7.76	24.54	47.92	181.0	0.05263	0.04362	0.00000	0.00000	0.1587	0.05884	...	30.37	59.16	268.6	0.08996	0.06444	0.0000	0.0000	0.2871	0.07039	B

569 rows × 31 columns

The dataset contains several measurements of given quantities measured from digitized image of a fine needle aspirate (FNA) of a breast mass, together with a categorical variable Diagnosis with two levels: M (malignant) and B (benign).

In this case, it would be good to be able to study whether a relationship exists between some of the considered independent variables and the dependent variable or simply to classify an example in one of the two classes from new observation.

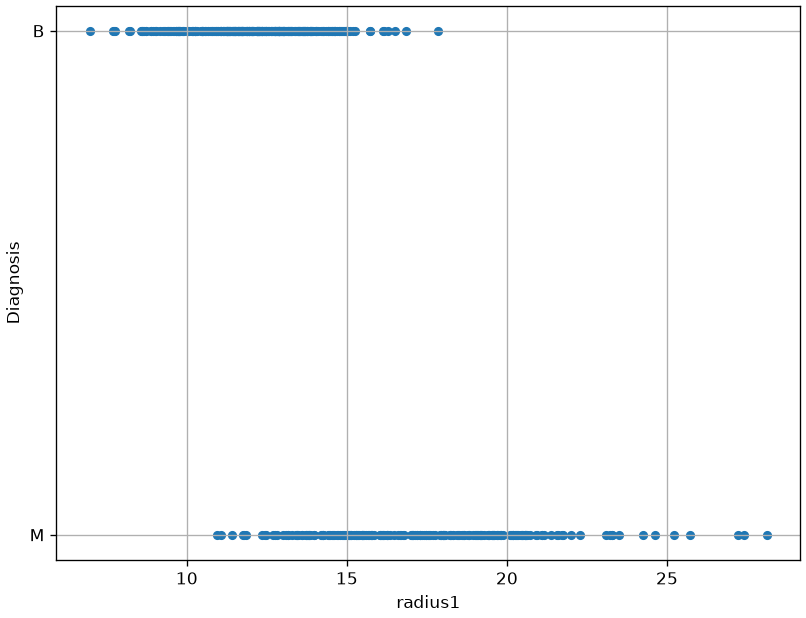

We will consider the radius1 variable for the moment. Let us plot this variable with respect to Diagnosis:

From the plot above, we can note that there is some form of relationship between the two variables. Indeed:

For low values of radius1, we tend to have more benign cases;
For large values of radius1, we tend to have more malignant cases.

Limits of Linear Regression

Of course, we would like to quantify this relationship in a more formal way. As in the case of a linear regressor, we want to define a model which can predict the independent variable y from the dependent variables x_i. If such model gives good predictions, than we can trust its interpretation as a means of studying the relationship between the variables.

We can think of converting B => 1 and M => 0, and then compute a linear regressor:

Diagnosis = \beta_0 + \beta_1 radius1

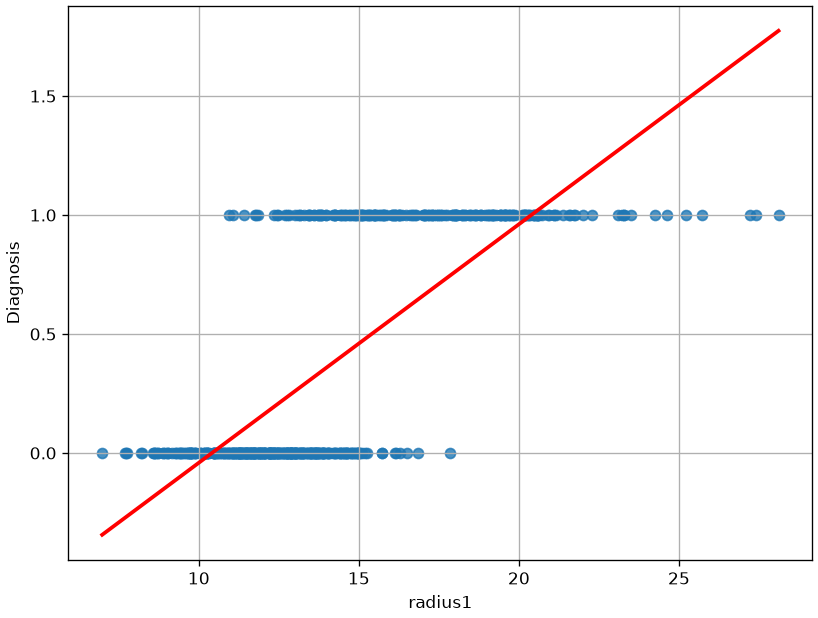

This would be the result:

We can immediately see that this function does not model the relationship between the two variables very well. While we obtain a statistically relevant regressor with R^2=0.533 and statistically relevant coefficients, the residual plot will look like this:

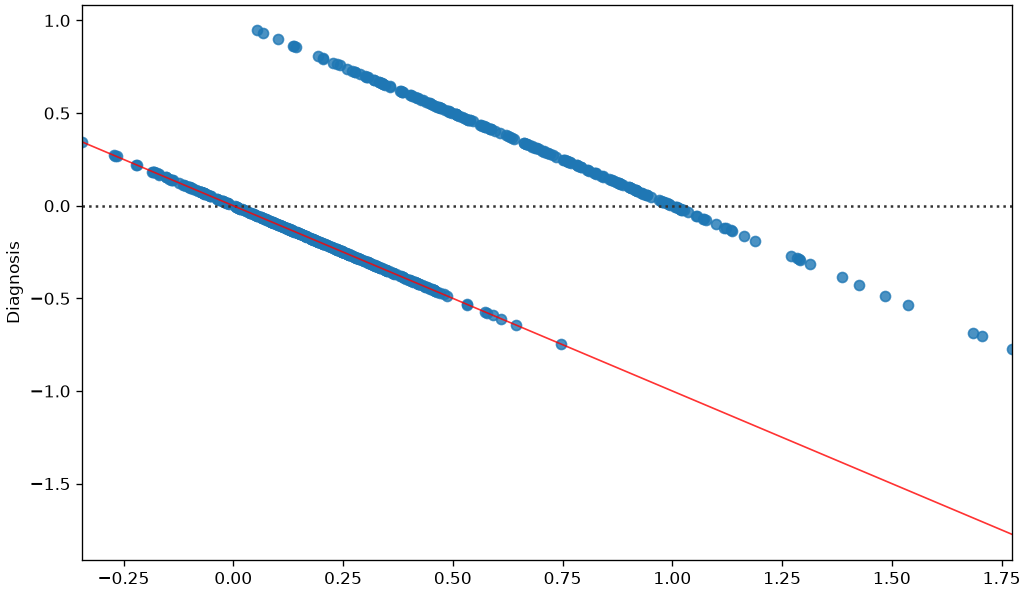

The correlation between the residuals and the independent variable is a strong indication that the true relationship between the two variables is not correctly modeled. After all, from a purely predictive point of view, we are using a linear regressor which takes the form:

f:\mathbb{R} \to \mathbb{R}

while the values Diagnosis variable belong to the set \{0,1\} and we would need instead a function with the following form:

f:\mathbb{R} \to \{0,1\}

However, the linear regressor cannot directly predict discrete values.

In practice, while with a linear regressor we wanted to predict continuous values, now we want to assign observations \mathbf{x} to discrete bins (in this case only two possible ones). As we will better study later in the course, this problem is known as classification.

From Binary Values to Probabilities

If we want to model some form of continuous value, we could think to transition from \{0,1\} to [0,1] using probabilities, which is a way to turn discretized values to “soft” values indicating our belief in the fact that Diagnosis will take either a 0 or 1 value. We could hence think to model the following probability, rather than modeling Diagnosis directly:

P(Diagnosis=1| radius1)

Note that modeling that probability directly is what discriminative models do.

However, even in this case, a model of the form:

P(Diagnosis=1|radius1) = \beta_0 + \beta_1 radius1

Would not be appropriate. Indeed, while P(Diagnosis=1| radius1) needs to be in the [0,1] range, the linear combination \beta_0 + \beta_1 radius1 will naturally output values smaller than 0 and larger than 1. How should we interpret such values?

Intuitively, we would expect to P(Diagnosis=1| radius1) to assume values in the [0,1] range for intermediate values (say radius \in [10,20]), while for extremely low values of (say radius <10) the probability should saturate to 0 and for extremely large values (say radius >20) the probability should saturate to 1.

When radius1 takes large values (say larger than 20), we expect probability to saturate to 1.

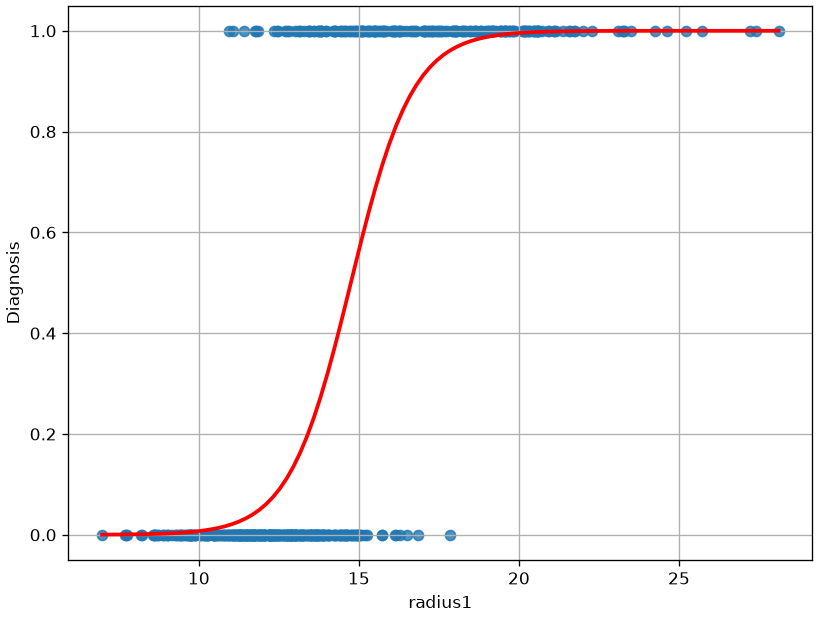

In practice, we would expect a result similar to the following:

As can be noted, the function above is not linear, and hence it cannot be fit with a linear regressor. However, we have seen that a linear regressor can be tweaked to also represent nonlinear functions.

The Logistic Function

We need to find a transformation of the formulation of the linear regressor to transform its output into a nonlinear function of the independent variables. Of course, we do not want any transformation, but one that has the previously highlighted properties.

In practice the logistic function has some nice properties that, as we will se in a moment, allow to easily interpret the resulting model in a probabilistic way. The logistic function is defined as:

f(x) = \frac{1}{1+e^{-x}}

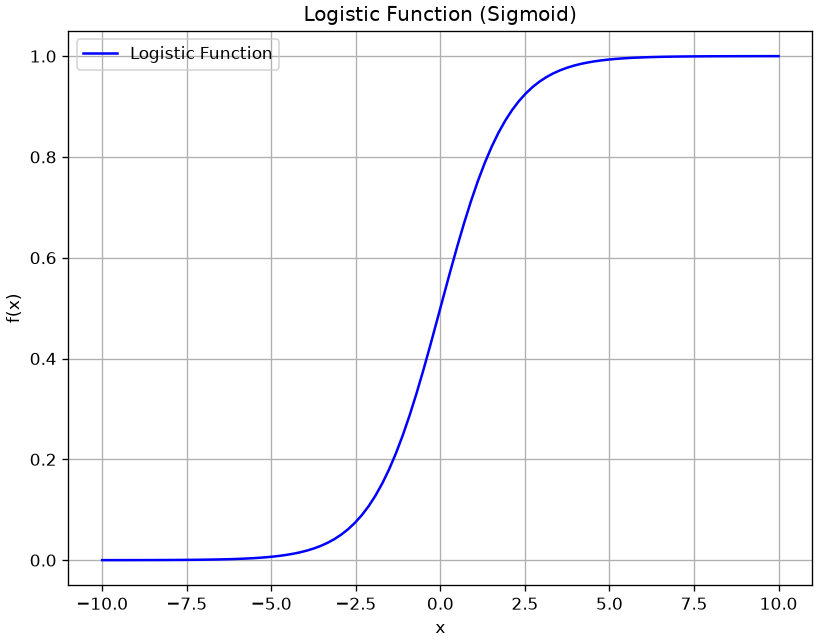

and has the following shape:

As we can see, the function has the properties we need:

Its values are comprised between 0 and 1;
It saturates to 0 and 1 for extreme values of x.

Additionally, it is differentiable, which will be useful for optimization later.

The Logistic Regression Model

In practice, we define our model, the logistic regressor model as follows (simple logistic regression):

P(Diagnosis=1|X) = f(\beta_0 + \beta_1 X) = \frac{1}{1+e^{-(\beta_0 + \beta_1 X)}}

Or, more in general (multiple logistic regression):

P(y=1|\mathbf{x}) = \frac{1}{1+e^{-(\beta_0 + \beta_1 x_1 + \ldots + \beta_n x_n)}}

It is easy to see that:

p=\frac{1}{1+e^{-x}} \Rightarrow p+pe^{-x} = 1 \Rightarrow pe^{-x} = 1-p \Rightarrow e^{-x} = \frac{1-p}{p} \Rightarrow e^{x} = \frac{p}{1-p}

Hence:

e^{\beta_0+\beta_1x_1 + \ldots + \beta_nx_n} = \frac{P(y=1|\mathbf{x})}{1-P(y=1|\mathbf{x})}

The term on the right is called the odd of P(y=1|\mathbf{x}).

The odd of P(y=1|\mathbf{x}) is the number of times we believe the example will be positive (observed \mathbf{x}) over the number of times we believe the example will be negative.

For instance, if we believe that the example will be positive 3 times out of 10, then the odd will be \frac{3}{7}.

By taking the logarithm of both terms, we obtain:

\log \left(\frac{P(y=1|\mathbf{x})}{1-P(y=1|\mathbf{x})}\right) = \beta_0 + \beta_1 x_1 + \ldots + \beta_n x_n

The expression:

\log \left(\frac{P(y=1|\mathbf{x})}{1-P(y=1|\mathbf{x})}\right)

Is the logarithm of the odd (log odd), and it is called logit, hence the logistic regression is sometimes called logit regression.

The expression above shows how a logistic regressor can be seen as a linear regressor (the expression on the right side of the equation) on the logit (the log odd). This paves the way to useful interpretations of the model, as shown in the next section.

Estimation of the Parameters of a Logistic Regressor

To fit the model and find suitable values for the \mathbf{\beta_i} parameters, we will define a cost function, similarly to what we have done in the case of linear regression.

Even if we can see the logistic regression problem as the linear regression problem of fitting the logit(p) = \mathbf{\beta}^{T}\mathbf{x} function, differently from linear regression, we should note that we do not have the ground truth probabilities p. Indeed, our observations only provide input examples \mathbf{x}^{(i)} and the corresponding labels y^{(i)}.

Starting from the definition:

P\left( y = 1 \middle| \mathbf{x}; \mathbf{\beta} \right) = f_{\mathbf{\beta}}\left( \mathbf{x} \right) = \frac{1}{1 + e^{- \mathbf{\beta}^{T}\mathbf{x}}} = \sigma(\mathbf{\beta}^{T}\mathbf{x})

We can write:

P\left( y = 1 \middle| \mathbf{x};\mathbf{\beta} \right) = f_{\mathbf{\beta}}(\mathbf{x})

P\left( y = 0 \middle| \mathbf{x};\mathbf{\beta} \right) = 1 - f_{\mathbf{\beta}}(\mathbf{x})

Since y can only take values 0 and 1, this can also be written as follows in a more compact form:

P\left( y \middle| \mathbf{x};\mathbf{\beta} \right) = \left( f_{\mathbf{\beta}}\left( \mathbf{x} \right) \right)^{y}\left( 1 - f_{\mathbf{\beta}}\left( \mathbf{x} \right) \right)^{1 - y}

Indeed, when y = 1, the second factor is equal to 1 and the expression reduces to P\left( y = 1 \middle| \mathbf{x};\mathbf{\beta} \right) = f_{\mathbf{\beta}}(\mathbf{x}). Similarly, if y = 0, the first factor is equal to 1 and the expression reduces to 1 - f_{\mathbf{\beta}}(x).

We can estimate the parameters by maximum likelihood, i.e., choosing the values of the parameters which maximize the probability of the data under the model identified by the parameters \mathbf{\beta}:

L\left( \mathbf{\beta} \right) = P(Y|X;\mathbf{\beta})

If we assume that the training examples are all independent, the likelihood can be expressed as:

L\left( \mathbf{\beta} \right) = \prod_{i = 1}^{N}{P(y^{(i)}|\mathbf{x}^{(i)};\mathbf{\beta})} = \prod_{i = 1}^{N}{f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right)^{y^{(i)}}\left( 1 - f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right) \right)^{{1 - y}^{(i)}}}

Maximizing this expression is equivalent to minimizing the negative logarithm of L(\mathbf{\beta}) (negative log-likelihood - nll):

nll\left( \mathbf{\beta} \right) = - \log{L\left( \mathbf{\beta} \right)} = - \sum_{i = 1}^{N}{\log\left\lbrack f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right)^{y^{(i)}}\left( 1 - f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right) \right)^{{1 - y}^{(i)}} \right\rbrack} =

= - \sum_{i = 1}^{N}{\lbrack y^{(i)}\log{f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right)}} + \left( 1 - y^{(i)} \right)\log{(1 - f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right)})\rbrack

Hence, we will define our cost function as:

J\left( \mathbf{\beta} \right) = - \sum_{i = 1}^{N}{\lbrack y^{(i)}\log{f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right)}} + \left( 1 - y^{(i)} \right)\log{(1 - f_{\mathbf{\beta}}\left( \mathbf{x}^{(i)} \right)})\rbrack

This can be rewritten more explicitly in terms of the \mathbf{\beta} parameters as follows:

J\left( \mathbf{\beta} \right) = - \sum_{i = 1}^{N}{\lbrack y^{(i)}\log{\sigma\left( {\mathbf{\beta}^{T}\mathbf{x}}^{(i)} \right)}} + \left( 1 - y^{(i)} \right)\log{(1 - \sigma\left( \mathbf{\beta}^{T}\mathbf{x}^{(i)} \right)})\rbrack

Similarly to linear regression, we now have a cost function to minimize in order to find the values of the \beta_i parameters. Unfortunately, in this case, J(\mathbf{\beta}) assumes a nonlinear form which prevents us to use the least square principles and there is no closed form solution for the parameter estimation. In these cases, parameters can be estimated using some form of iterative solver, which begins with an initial guess for the parameters and iteratively refine them to find the final solution. Luckily, the logistic regression cost function is convex, and hence only a single solution is admitted, independently from the initial guess.

Different iterative solvers can be used in practice. The most commonly used is the gradient descent algorithm, which requires the cost function to be differentiable.

Visualizing the Cost Function (The “Loss Landscape”)

We have just derived the cost function J(\mathbf{\beta}), also known as Log-Loss or Binary Cross-Entropy.

You were told that this function is convex, which guarantees a single global minimum. But what does that actually look like?

Let’s visualize it. We will build a simple model Diagnosis ~ radius1, which has two parameters: \beta_0 (intercept) and \beta_1 (slope). We will then plot the Cost J for every possible combination of \beta_0 and \beta_1. We are looking for a “bowl” shape.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.preprocessing import StandardScaler
from mpl_toolkits.mplot3d import Axes3D # Moved import to top

# --- 1. Load and Prepare Data ---
data = pd.read_csv(DATA + "breast_cancer_wisconsin.csv")

# Map Diagnosis to 0 (Benign) and 1 (Malignant)
data['Diagnosis'] = data['Diagnosis'].replace({'B':0,'M':1})

# Extract our 1D feature and target
X = data[['radius1']].values
y = data['Diagnosis'].values

# --- 2. CRITICAL STEP: Scale the Feature ---
# This is vital for visualization. Without it, the "bowl"
# will be extremely stretched and impossible to see.
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

def compute_cost(X, y, beta_0, beta_1):
    """
    Calculates the total log-loss for a given beta_0 and beta_1.
    """
    # 1. Calculate the linear part (z)
    # --- THIS IS THE FIX ---
    # We .flatten() X to make it (n,) to match y's shape (n,)
    z = beta_0 + (X.flatten() * beta_1)
    # ----------------------

    # 2. Apply the sigmoid function to get probabilities (p_hat)
    p_hat = 1 / (1 + np.exp(-z)) # p_hat is now shape (n,)

    # --- Numerical Stability ---
    # We must "clip" values to prevent log(0) or log(1-1),
    # which would result in -inf.
    epsilon = 1e-10
    p_hat = np.clip(p_hat, epsilon, 1 - epsilon)
    # -------------------------

    # 3. Calculate the log-loss for each sample
    # y (n,) and p_hat (n,) will now multiply element-wise
    cost_per_sample = -(y * np.log(p_hat) + (1 - y) * np.log(1 - p_hat))

    # 4. Return the *total* cost for the whole dataset
    return np.sum(cost_per_sample)

# 1. Create ranges for Beta 0 (intercept) and Beta 1 (slope)
beta_0_range = np.linspace(-5, 5, 100)
# --- UPDATED as requested ---
beta_1_range = np.linspace(-2, 14, 100)
# --------------------------

# 2. Create the 2D grid
B0, B1 = np.meshgrid(beta_0_range, beta_1_range)
costs = np.zeros_like(B0)

# 3. Calculate the cost for every point on the grid
for i in range(B0.shape[0]):
    for j in range(B0.shape[1]):
        costs[i, j] = compute_cost(X_scaled, y, B0[i, j], B1[i, j])

# Find the minimum for plotting
min_cost_idx = np.unravel_index(np.argmin(costs), costs.shape)
best_b0 = B0[min_cost_idx]
best_b1 = B1[min_cost_idx]
min_cost = costs[min_cost_idx]

# --- Create the Plot ---
fig = plt.figure(figsize=(18, 7))

# --- Subplot 1: 3D Surface Plot ---
ax1 = fig.add_subplot(1, 2, 1, projection='3d')
ax1.plot_surface(B0, B1, costs, cmap='viridis', alpha=0.8)
# --- UPDATED to show both optimal parameters ---
ax1.scatter(best_b0, best_b1, min_cost, color='red', s=200,
            edgecolor='black', label=f'Global Minimum (β0={best_b0:.2f}, β1={best_b1:.2f})')
# ---------------------------------------------
ax1.set_xlabel('Intercept (β0)')
ax1.set_ylabel('Slope (β1)')
ax1.set_zlabel('Cost J(β) (Log-Loss)')
ax1.set_title('3D Loss Landscape')
ax1.view_init(elev=20, azim=135) # Adjust angle
ax1.legend()

# --- Subplot 2: 2D Contour Plot ---
ax2 = fig.add_subplot(1, 2, 2)
contours = ax2.contour(B0, B1, costs, levels=50, cmap='viridis')
plt.clabel(contours, inline=True, fontsize=8)

# --- UPDATED to show both optimal parameters ---
ax2.plot(best_b0, best_b1, 'ro', markersize=10,
         label=f'Global Minimum (β0={best_b0:.2f}, β1={best_b1:.2f})')
# ---------------------------------------------
ax2.set_xlabel('Intercept (β0)')
ax2.set_ylabel('Slope (β1)')
ax2.set_title('2D Contour Plot of Loss')
ax2.axhline(0, color='k', ls='--', lw=0.5)
ax2.axvline(0, color='k', ls='--', lw=0.5)
ax2.legend()
ax2.grid(True, linestyle='--', alpha=0.5)

plt.show()

print(f"Optimal parameters:")
print(f"  β0 (Intercept): {best_b0:.4f}")
print(f"  β1 (Slope):       {best_b1:.4f}")
print(f"  Minimum Cost (Log-Loss): {min_cost:.4f}")

Optimal parameters:
  β0 (Intercept): -0.6566
  β1 (Slope):       3.6566
  Minimum Cost (Log-Loss): 165.0107

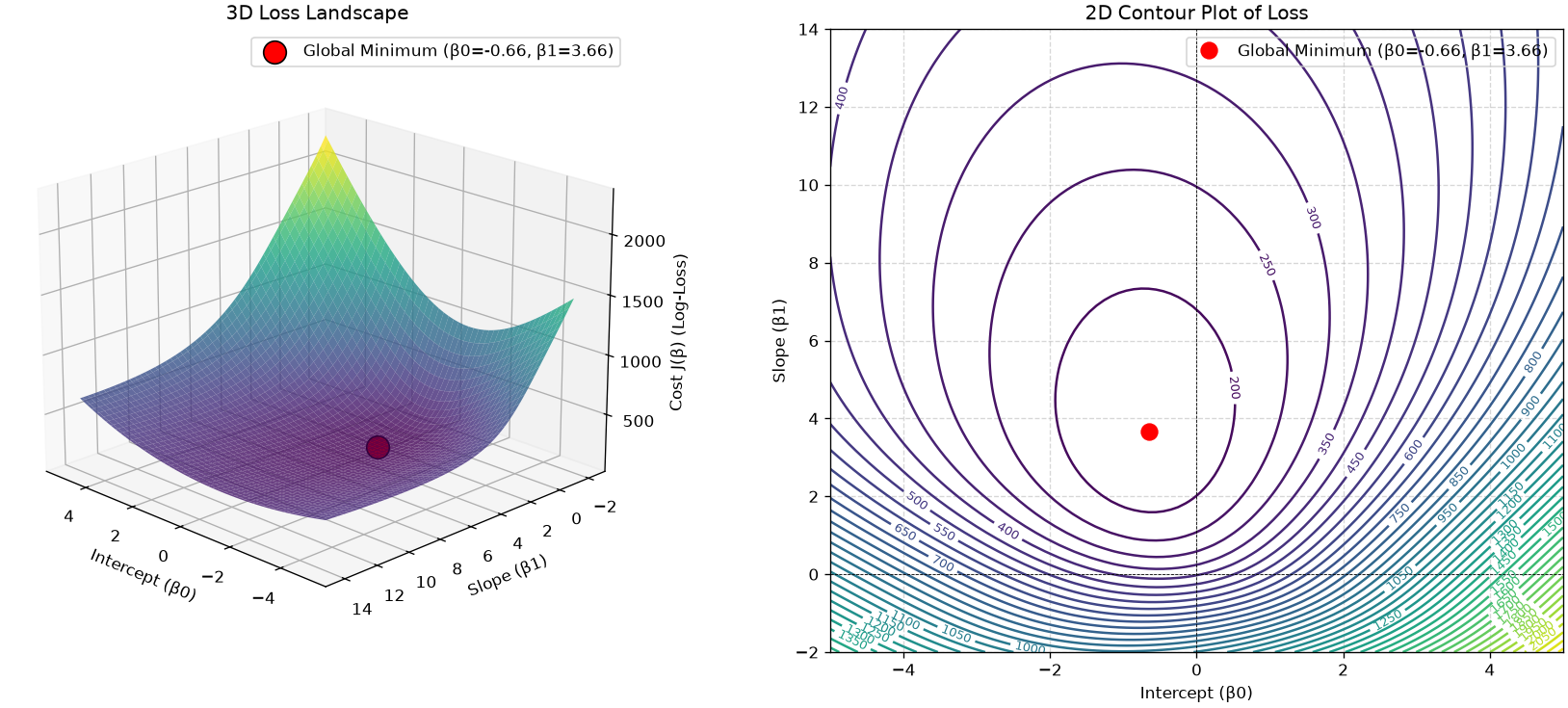

The plots clearly show a single, smooth, convex “bowl”.

There are no “local minima” or “bumpy” areas for an optimizer to get stuck in.
This is why we were told the logistic regression cost function is convex.
The red dot at the very bottom of this bowl represents the one optimal set of parameters (\beta_0, \beta_1) that minimizes the cost.

An iterative solver like Gradient Descent is guaranteed to find this minimum, just like a marble released from anywhere on the bowl’s rim is guaranteed to roll to the bottom.

Statistical Interpretation of the Coefficients of a Logistic Regressor

Let’s now see how to interpret the coefficients of a logistic regressor.

Interpretation of the intercept \beta_0

Remember that the regression model (in the case of simple logistic regression) is as follows:

\log(\frac{p}{1-p})=\beta_0 + \beta_1 x

Applying what we know about logistic regressors, we can write:

x=0 \Rightarrow \log \frac{p}{1-p}={\beta}_0

To have a clearer picture, we can exponentiate both sides of the equation and write:

x=0 \Rightarrow \frac{p}{1-p}=e^{\beta_0}

Remember that \frac{p}{1-p} is the odd that the dependent variable is equal to 1 when observing x and, as such, it has a clear interpretation. For example, if the odds of an event are \frac{3}{1}, then it is 3 times more likely to occur than not to occur. So, for x=0, it is e^{\beta_0} times more likely that the dependent variable is equal to 1, rather than being equal to 0.

Interpretation of variable coefficients \beta_i

We know that:

odds(p|x) = \frac{P(y=1|x)}{1-P(y=1|x)}

We can write:

\log odds(p|x) = \beta_0 + \beta_1 x

Hence:

\log odds(p|x+1) - \log odds(p|x) = \beta_0 + \beta_1 (x+1) - \beta_0 - \beta_1 x = \beta_1 (x+1) - \beta_1 x = \beta_1

Exponentiating both sides, we get:

e^{\log odds(p|x+1) - \log odds(p|x)} = e^{\beta_1} \Rightarrow \frac{e^{\log odds(p|x+1)}}{e^{\log odds(p|x)}} = e^{\beta_1} \Rightarrow \frac{odds(p|x+1)}{odds(p|x)} = e^{\beta_1} \Rightarrow odds(p|x+1) = e^{\beta_1}odds(p|x)

We can thus say that increasing the variable x by one unit corresponds to a multiplicative increase in odds by e^{\beta_1}.

This analysis can be easily extended to the case of a multiple logistic regressor. Hence in general, given the model:

P(y=1|\mathbf{x}) = \sigma(\beta_0 + \beta_1 x_1 + \ldots + \beta_n x_n)

We can say that:

e^{\beta_0} is the odd of y being equal to 1 rather than 0 when x_i=0, \ \forall i;
An increment of one unit in the independent variable x_i corresponds to a multiplicative increment of e^{\beta_i} in the odds of y=1. So if e^{\beta_i}=0.05, then y=1 is 5\% more likely for a one-unit increment of x.

Example of Logistic Regression

Let us now apply logistic regression to a larger set of variables in our regression problem. We will consider the following independent variables:

radius1
texture1
perimeter1
area1
smoothness1
compactness1
concavity1
symmetry1

The dependent variable is again Diagnosis.

Once fit to the data, we will obtain the following parameters:

R^2	Adj. R^2	F-statistic	Prob(F-statistic)	Log-Likelihood
0.670	0.666	142.4	1.16e-129	-78.055

All values have interpretations similar to the ones obtained in the case of linear regression. The Log-Likelihood reports the value of the logarithm of the likelihood which was used to train the data.

The estimates for the coefficients are as follows:

ols("Diagnosis ~ radius1 + texture1 + perimeter1 + area1 + smoothness1 + compactness1 + concavity1 + symmetry1",data).fit().summary().tables[1]

	coef	std err	t	P>\|t\|	[0.025	0.975]
Intercept	-2.6591	0.224	-11.896	0.000	-3.098	-2.220
radius1	0.4688	0.133	3.532	0.000	0.208	0.730
texture1	0.0219	0.003	7.376	0.000	0.016	0.028
perimeter1	-0.0473	0.021	-2.272	0.023	-0.088	-0.006
area1	-0.0009	0.000	-3.985	0.000	-0.001	-0.000
smoothness1	5.1389	1.221	4.208	0.000	2.740	7.538
compactness1	0.3080	0.854	0.360	0.719	-1.370	1.986
concavity1	2.0973	0.414	5.065	0.000	1.284	2.911
symmetry1	1.2739	0.568	2.244	0.025	0.159	2.389

We notice that not all variables have a statistically relevant relationship with the dependent variable. Applying backward elimination, we remove compactness1 and obtain the following estimates:

ols("Diagnosis ~ radius1 + texture1 + perimeter1 + area1 + smoothness1 + concavity1 + symmetry1",data).fit().summary().tables[1]

	coef	std err	t	P>\|t\|	[0.025	0.975]
Intercept	-2.6708	0.221	-12.086	0.000	-3.105	-2.237
radius1	0.4360	0.097	4.517	0.000	0.246	0.626
texture1	0.0219	0.003	7.405	0.000	0.016	0.028
perimeter1	-0.0419	0.014	-2.915	0.004	-0.070	-0.014
area1	-0.0010	0.000	-4.477	0.000	-0.001	-0.001
smoothness1	5.3093	1.125	4.719	0.000	3.099	7.519
concavity1	2.1479	0.389	5.517	0.000	1.383	2.913
symmetry1	1.3132	0.557	2.359	0.019	0.220	2.407

These are now all statistically relevant. For instance, we can see that:

When all variables are set to zero, the odds of the benign tumor are e^{-2.6708} \approx 0.07, or \frac{7}{100}. This is a base value.
An increment in one unit of texture1 increments the odds of a benign tumor multiplicatively by a factor of e^{0.0219} \approx 1.02 (a +2\%), when all other variables are constant.
An increment of one unit of perimeter1 decrements the odds of benign tumor multiplicatively by a factor of e^{-0.0419} \approx 0.96 (a -4\%), when all other variables are constant.

Evaluating the Logistic Regression Model

The statsmodels summary table gives us a lot of information, including a value for R-squared. It’s critical to understand that this is NOT the same R^2 we used in linear regression.

The Problem: We Can’t Use R^2

In OLS (Linear Regression), R^2 = 1 - \frac{RSS}{TSS}. This metric is based on minimizing the sum of squared residuals (RSS).

In Logistic Regression, our model does not predict a continuous value. It predicts a probability. We don’t minimize squared residuals; we minimize the negative log-likelihood (also called Cross-Entropy Loss).

Because the underlying cost function is different, the R^2 metric is not mathematically valid. A model that predicts a probability of 0.9 for an event that happens (y=1) is a fantastic prediction, but it would have a “residual” of (1 - 0.9) = 0.1, which OLS would want to square and “punish.” This doesn’t make sense.

The Solution: “Pseudo R^2”

To get a similar “0-to-1” metric for goodness-of-fit, statisticians have developed several “Pseudo R^2” measures. The one statsmodels reports by default is McFadden’s R^2.

The logic is the same as OLS R^2: “How much better is our model than a ‘dumb’ baseline?”

In OLS: We compared our model’s error (RSS) to the baseline’s error (TSS).
In Logistic Regression: We compare our model’s Log-Likelihood to a baseline model’s Log-Likelihood.

Baseline Model (Log-Likelihood Null, LL_{Null}): A “dumb” model that only knows the prior (e.g., P(y=1) = 0.35). This is an “intercept-only” model. statsmodels calculates this for you.
Our “Full” Model (Log-Likelihood, LL_{Model}): This is the log-likelihood of our fitted model. It will be a “less negative” (better) number than LL_{Null}.

McFadden’s R^2 is then defined as:

R^2_{McFadden} = 1 - \frac{LL_{Model}}{LL_{Null}}

Interpretation:

LL_{Model} is the value reported as “Log-Likelihood” in your summary table.
LL_{Null} is reported as “LL-Null”.
Pseudo R-sq.: This is the R^2_{McFadden} score.

Consider the following example:

Log-Likelihood: -105.19 (LL_{Model})
LL-Null: -452.39 (LL_{Null})
Pseudo R-sq.: 0.77

This 0.77 was calculated as 1 - (\frac{-105.19}{-452.39}) \approx 0.77.

It is interpreted similarly to R^2: “Our model’s features explain about 77% of the ‘deviance’ (uncertainty) in the outcome, compared to a model that just guesses the average.”

Important: You cannot compare a Pseudo R-sq. from logistic regression to an R^2 from OLS. They are not equivalent. It is only useful for comparing nested logistic regression models (like we do in backward elimination).

Predictive Evaluation

When we use the model in a purely predictive way, we can also use all evaluation measures we have seen for predictive analysis, such as accuracy, precision, recall, F1, confusion matrix etc.

Logistic Regression in Python

Let’s look at an example of logistic regression in Python. We will use the R dataset biopsy. We can load it using statsmodels:

from statsmodels.datasets import get_rdataset
biopsy = get_rdataset('biopsy',package='MASS')
print(biopsy.__doc__)

====== ===============
biopsy R Documentation
====== ===============

Biopsy Data on Breast Cancer Patients
-------------------------------------

Description
~~~~~~~~~~~

This breast cancer database was obtained from the University of
Wisconsin Hospitals, Madison from Dr. William H. Wolberg. He assessed
biopsies of breast tumours for 699 patients up to 15 July 1992; each of
nine attributes has been scored on a scale of 1 to 10, and the outcome
is also known. There are 699 rows and 11 columns.

Usage
~~~~~

.. code:: R

   biopsy

Format
~~~~~~

This data frame contains the following columns:

``ID``
   sample code number (not unique).

``V1``
   clump thickness.

``V2``
   uniformity of cell size.

``V3``
   uniformity of cell shape.

``V4``
   marginal adhesion.

``V5``
   single epithelial cell size.

``V6``
   bare nuclei (16 values are missing).

``V7``
   bland chromatin.

``V8``
   normal nucleoli.

``V9``
   mitoses.

``class``
   ``"benign"`` or ``"malignant"``.

Source
~~~~~~

P. M. Murphy and D. W. Aha (1992). UCI Repository of machine learning
databases. [Machine-readable data repository]. Irvine, CA: University of
California, Department of Information and Computer Science.

O. L. Mangasarian and W. H. Wolberg (1990) Cancer diagnosis via linear
programming. *SIAM News* **23**, pp 1 & 18.

William H. Wolberg and O.L. Mangasarian (1990) Multisurface method of
pattern separation for medical diagnosis applied to breast cytology.
*Proceedings of the National Academy of Sciences, U.S.A.* **87**, pp.
9193–9196.

O. L. Mangasarian, R. Setiono and W.H. Wolberg (1990) Pattern
recognition via linear programming: Theory and application to medical
diagnosis. In *Large-scale Numerical Optimization* eds Thomas F. Coleman
and Yuying Li, SIAM Publications, Philadelphia, pp 22–30.

K. P. Bennett and O. L. Mangasarian (1992) Robust linear programming
discrimination of two linearly inseparable sets. *Optimization Methods
and Software* **1**, pp. 23–34 (Gordon & Breach Science Publishers).

References
~~~~~~~~~~

Venables, W. N. and Ripley, B. D. (2002) *Modern Applied Statistics with
S-PLUS.* Fourth Edition. Springer.

The dataset contains 699 observations and 11 columns. Each observation contains measurements of 9 quantities relating to tissue samples that can be “benign” or “malignant” tumors. Let’s start by manipulating the data a bit. We visualize the values of the class variable:

biopsy.data['class'].unique()

array(['benign', 'malignant'], dtype=object)

To calculate the logistic regression model using statsmodels, it is necessary to convert these values into integers (0 or 1). Furthermore, it is advisable to avoid calling the column class as this is a reserved word for statsmodels. We build a new column cl that contains the modified class values:

biopsy.data['cl'] = biopsy.data['class'].replace({'benign':0, 'malignant':1})

We will use the logit object form statsmodels:

from statsmodels.formula.api import logit
model = logit('cl ~ V1 + V2 + V3 + V4 + V5 + V6 + V7 + V8 + V9',biopsy.data).fit()
model.summary()

Optimization terminated successfully.
         Current function value: 0.075321
         Iterations 10

Logit Regression Results
Dep. Variable:	cl	No. Observations:	683
Model:	Logit	Df Residuals:	673
Method:	MLE	Df Model:	9
Date:	Tue, 15 Sep 2026	Pseudo R-squ.:	0.8837
Time:	19:40:30	Log-Likelihood:	-51.444
converged:	True	LL-Null:	-442.18
Covariance Type:	nonrobust	LLR p-value:	2.077e-162

	coef	std err	z	P>\|z\|	[0.025	0.975]
Intercept	-10.1039	1.175	-8.600	0.000	-12.407	-7.801
V1	0.5350	0.142	3.767	0.000	0.257	0.813
V2	-0.0063	0.209	-0.030	0.976	-0.416	0.404
V3	0.3227	0.231	1.399	0.162	-0.129	0.775
V4	0.3306	0.123	2.678	0.007	0.089	0.573
V5	0.0966	0.157	0.617	0.537	-0.210	0.404
V6	0.3830	0.094	4.082	0.000	0.199	0.567
V7	0.4472	0.171	2.609	0.009	0.111	0.783
V8	0.2130	0.113	1.887	0.059	-0.008	0.434
V9	0.5348	0.329	1.627	0.104	-0.110	1.179

The logistic regressor explains the relationship between variables well (R^2 high) and is significant (p-value almost zero). Some coefficients have a high p-value. Let’s start by eliminating the variable V2, which has the highest p-value:

model = logit('cl ~ V1 + V3 + V4 + V5 + V6 + V7 + V8 + V9',biopsy.data).fit()
model.summary()

Optimization terminated successfully.
         Current function value: 0.075321
         Iterations 10

Logit Regression Results
Dep. Variable:	cl	No. Observations:	683
Model:	Logit	Df Residuals:	674
Method:	MLE	Df Model:	8
Date:	Tue, 15 Sep 2026	Pseudo R-squ.:	0.8837
Time:	19:40:30	Log-Likelihood:	-51.445
converged:	True	LL-Null:	-442.18
Covariance Type:	nonrobust	LLR p-value:	2.036e-163

	coef	std err	z	P>\|z\|	[0.025	0.975]
Intercept	-10.0976	1.155	-8.739	0.000	-12.362	-7.833
V1	0.5346	0.141	3.784	0.000	0.258	0.811
V3	0.3182	0.174	1.826	0.068	-0.023	0.660
V4	0.3299	0.121	2.723	0.006	0.092	0.567
V5	0.0961	0.156	0.618	0.537	-0.209	0.401
V6	0.3831	0.094	4.082	0.000	0.199	0.567
V7	0.4465	0.170	2.628	0.009	0.114	0.779
V8	0.2125	0.112	1.902	0.057	-0.006	0.432
V9	0.5341	0.328	1.630	0.103	-0.108	1.176

We proceed by removing V5, which has a p-value of 0.537:

model = logit('cl ~ V1 + V3 + V4 + V6 + V7 + V8 + V9',biopsy.data).fit()
model.summary()

Optimization terminated successfully.
         Current function value: 0.075598
         Iterations 10

Logit Regression Results
Dep. Variable:	cl	No. Observations:	683
Model:	Logit	Df Residuals:	675
Method:	MLE	Df Model:	7
Date:	Tue, 15 Sep 2026	Pseudo R-squ.:	0.8832
Time:	19:40:30	Log-Likelihood:	-51.633
converged:	True	LL-Null:	-442.18
Covariance Type:	nonrobust	LLR p-value:	2.240e-164

	coef	std err	z	P>\|z\|	[0.025	0.975]
Intercept	-9.9828	1.126	-8.865	0.000	-12.190	-7.776
V1	0.5340	0.141	3.793	0.000	0.258	0.810
V3	0.3453	0.172	2.012	0.044	0.009	0.682
V4	0.3425	0.119	2.873	0.004	0.109	0.576
V6	0.3883	0.094	4.150	0.000	0.205	0.572
V7	0.4619	0.168	2.746	0.006	0.132	0.792
V8	0.2261	0.111	2.037	0.042	0.009	0.444
V9	0.5312	0.324	1.637	0.102	-0.105	1.167

We remove V9, which has a p-value greater than 0.05:

model = logit('cl ~ V1 + V3 + V4 + V6 + V7 + V8',biopsy.data).fit()
model.summary()

Optimization terminated successfully.
         Current function value: 0.078436
         Iterations 9

Logit Regression Results
Dep. Variable:	cl	No. Observations:	683
Model:	Logit	Df Residuals:	676
Method:	MLE	Df Model:	6
Date:	Tue, 15 Sep 2026	Pseudo R-squ.:	0.8788
Time:	19:40:30	Log-Likelihood:	-53.572
converged:	True	LL-Null:	-442.18
Covariance Type:	nonrobust	LLR p-value:	1.294e-164

	coef	std err	z	P>\|z\|	[0.025	0.975]
Intercept	-9.7671	1.085	-9.001	0.000	-11.894	-7.640
V1	0.6225	0.137	4.540	0.000	0.354	0.891
V3	0.3495	0.165	2.118	0.034	0.026	0.673
V4	0.3375	0.116	2.920	0.004	0.111	0.564
V6	0.3786	0.094	4.035	0.000	0.195	0.562
V7	0.4713	0.166	2.837	0.005	0.146	0.797
V8	0.2432	0.109	2.240	0.025	0.030	0.456

All coefficients now have an acceptable p-value. Let’s proceed to the analysis of the coefficients. We calculate the exponentials:

np.exp(model.params)

Intercept    0.000057
V1           1.863641
V3           1.418374
V4           1.401487
V6           1.460166
V7           1.602133
V8           1.275287
dtype: float64

The near-zero value of the exponential of the intercept indicates that, when all variables take zero values, the odds are very low. This suggests that p is low, while 1-p is very high. The probability of having a malignant tumor is therefore very low if all variables take zero values;
An increase of one unit in the value of V1 corresponds to an increase of approximately 86\% in the odds, making the possibility of a malignant tumor higher;
An increase of one unit in the value of V3 corresponds to an increase of approximately 41\% in the odds;
An increase of one unit in the value of V4 corresponds to an increase of approximately 40\% in the odds;
An increase of one unit in the value of V6 corresponds to an increase of approximately 46\% in the odds;
An increase of one unit in the value of V7 corresponds to an increase of approximately 60\% in the odds;
An increase of one unit in the value of V8 corresponds to an increase of approximately 27\% in the odds;

The increase of variables generally causes an increase in the odds. Therefore, we expect the values of the variables to be small in the presence of benign tumors.

Exercises

Read the coefficients. Fit a logistic regression of Survived on Sex and Pclass. Convert each coefficient into an odds ratio, and write one sentence per coefficient in the language of the problem — no statistical vocabulary.
Odds, log-odds, probability. For a female passenger in second class, compute the predicted log-odds, the odds and the probability by hand from the coefficients, then check against predict. Which of the three is linear in the predictors?
A continuous predictor. Add Age to the model. Is its coefficient significant? Compute how much the predicted probability changes between a 20-year-old and a 40-year-old, all else equal — and note that the answer depends on what “all else” is.
Confounding, again. Fit Survived ~ Age alone, then Survived ~ Age + Pclass. Does the age coefficient change? Relate what you see to chapter 11.
Where the linear model shows. Plot the predicted probability of survival against age for each class. Why are the three curves parallel on the log-odds scale but not on the probability scale?

References

Chapter 4 of [1]

[1] James, Gareth Gareth Michael. An introduction to statistical learning: with applications in Python, 2023.https://www.statlearning.com
